Turbo Mill

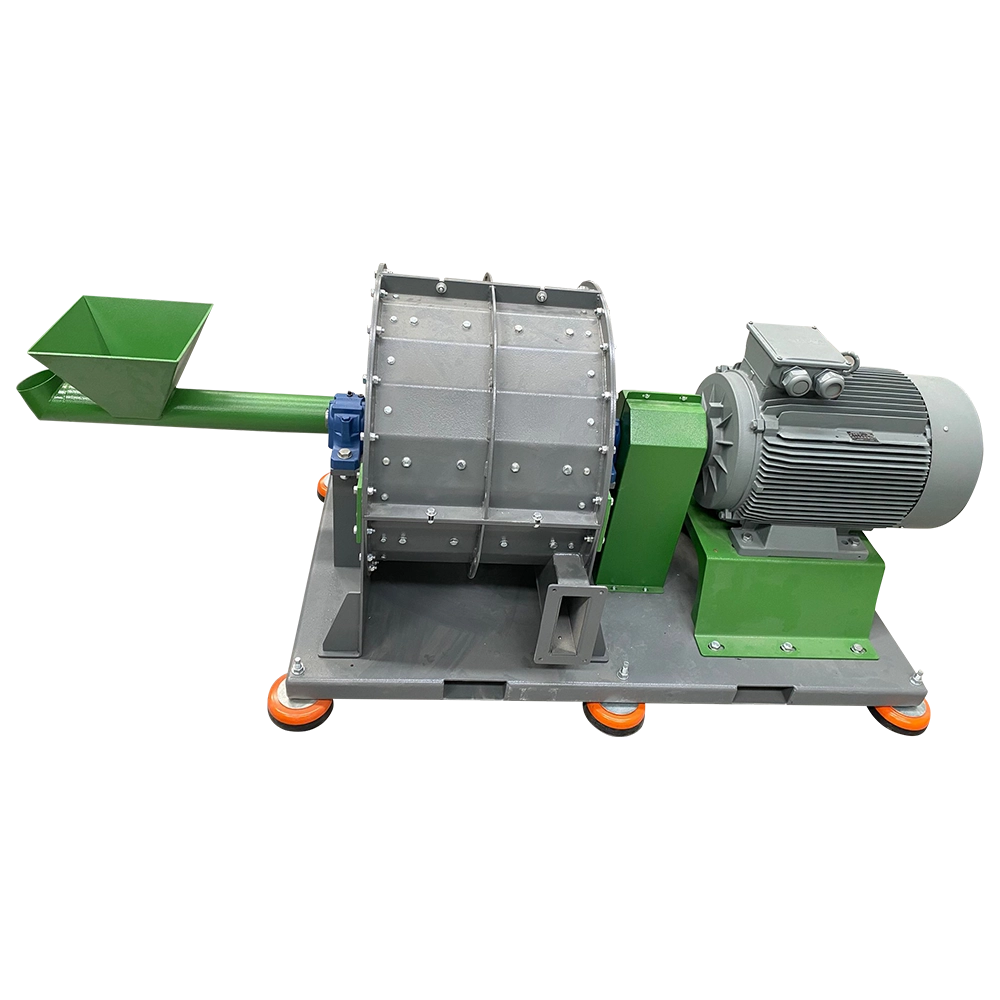

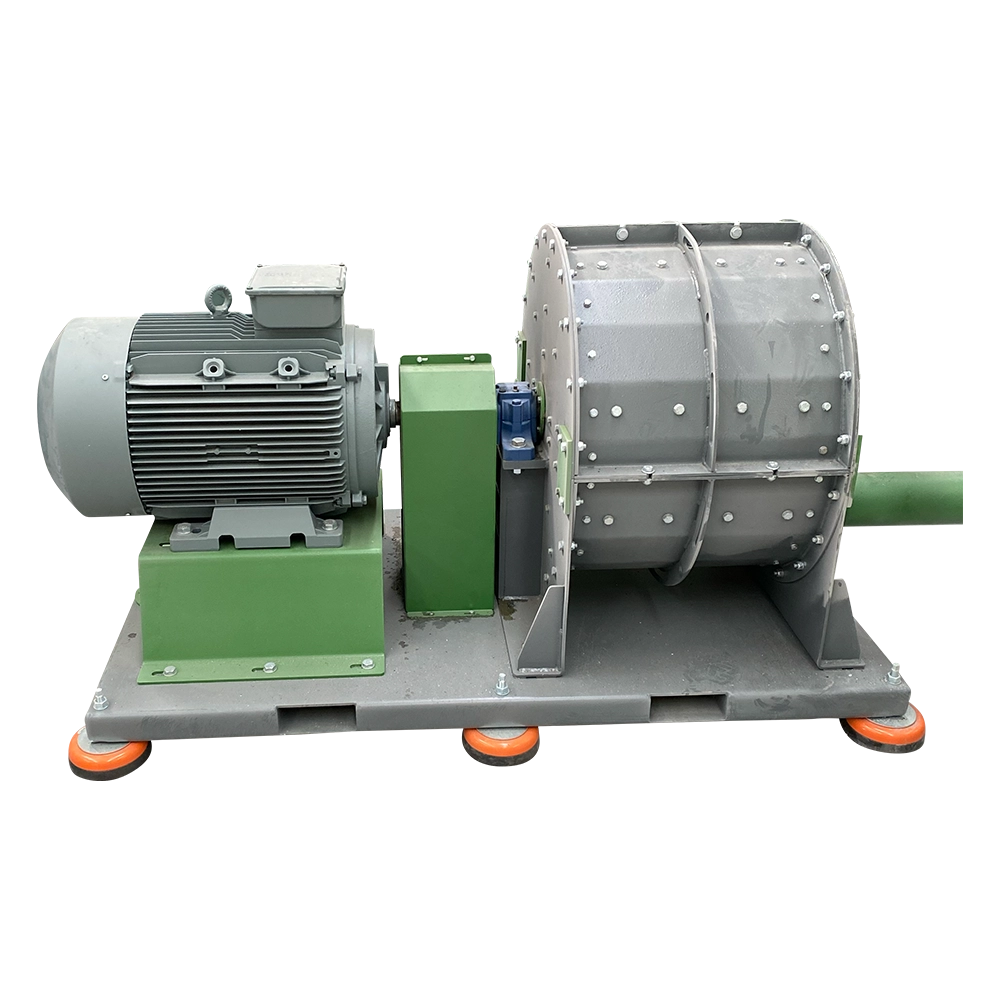

The TRM Series Turbo Mills is an advanced grinding system used primarily in the recycling of electronic boards and cables for the effective crushing and grinding of these materials. Plastics, metals, and other components found in electronic boards and cables are reduced to fine particles and transformed into recyclable raw materials thanks to this machine. With its high-speed rotors, the Turbo Mill carries out the grinding process, reducing materials to micron sizes through friction and impact forces.

Recyclable Materials

Cable
Circuit Board
Radiator

Technical Specification

  TRM S1
FEATURE VALUE
POWER 15 KW
ROTOR DIAMETER 380 mm
LENGTH 1420 mm
WIDTH 700 mm
HEIGHT 700 mm
WEIGHT 660 kg
  TRM M1
FEATURE VALUE
POWER 30 KW
ROTOR DIAMETER 500 mm
LENGTH 1680 mm
WIDTH 820 mm
HEIGHT 920 mm
WEIGHT 870 kg
  TRM L1
FEATURE VALUE
POWER 45 KW
ROTOR DIAMETER 620 mm
LENGTH 1790 mm
WIDTH 940 mm
HEIGHT 1040 mm
WEIGHT 1000 kg
